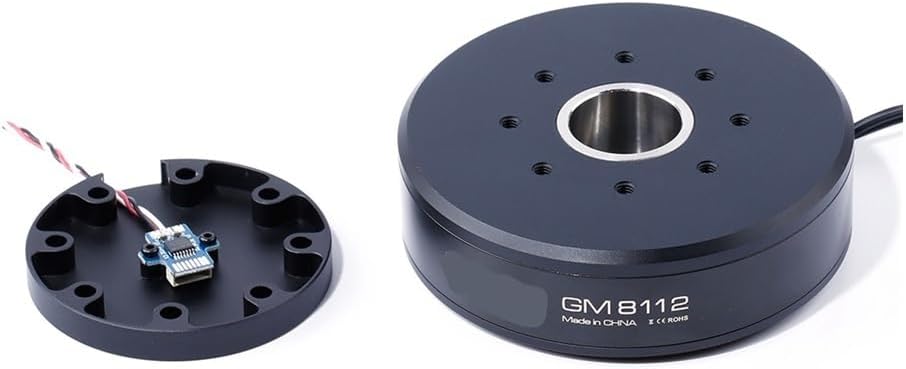

GM8112-80T Motor UAV Pod With AS5048A Encoder Encode Alum Case(W plastic slipring)
Product details
| Management number | 211311406 | Release Date | 2026/04/04 | List Price | $144.68 | Model Number | 211311406 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
SpecificationModel GM8112Motor Out Diameter: 89.5±0.05mmMotor Height: 33.4±0.2mm (Included with Encoder housing)Hollow Shaft(OD): 25-0.008/-0.012 mmHollow Shaft(ID): 22+0.05/+0.1 mmWire Length: 610±3mmCable AWG: #24Motor Weight: 446±1gWire : 2.5mm connectorNo-load current: 22VNo-load volts: 0.3±0.1 ANo-load Rpm: 380~420 RPMLoad current: 20VLoad volts: 2ALoad torque(g): 6000-9000Motor internal resistance: 4.2±5%(Resistance varies with temperature) voltage test: DC500V 1mA @2secRotor housing runout: 0.1mmMaximum power: 80WWorking current: 3-5SPacking List1 x GM8112 Motor1 x AS5048A Encoder with aluminum case
- Dynamic Power Range: Offers multiple KV options to support diverse flight styles from racing to long-range cruising.
- Responsive Thrust Delivery: Delivers strong and immediate power for agile maneuvers and stable flight control.
- Lightweight Efficiency: Designed to minimize weight while maintaining durability, enhancing aircraft performance and flight time.
- Universal Mounting: Standard bolt pattern allows for easy installation on various large-scale FPV and X-Class frames.
| Color | One Color |
|---|---|
| Brand Name | CiPmJn |
| Model Name | CiPmJn2255 |
| Item Weight | 50 Grams |
| Part Number | CiPmJn2255 |
| Manufacturer | CiPmJn |
| Model Number | CiPmJn2255 |
| Battery Capacity | 1 Amp Hours |
| Connectivity Technology | Bluetooth |
| Battery Cell Composition | Alkaline |
| Item Dimensions L x W x H | 0.39"L x 0.39"W x 0.39"H |
